Specifications
Engine
Engine Type V-Twin,liquid cooled,4 stroke
Displacement 963cc
Bore x Stroke 91x 74 mm
Maximum Power 85hp
Maximum Torque 86.7Nm
Fuel Supply EFI
Transmission CVT
Dimensions and Weight
Length x Width x Height 3827x1524x1880 mm
Wheelbase 3048 mm
Minimum Ground Clearance 330mm
Curb Weight 795kg
Maximum Load Capacity-driver,passenger, cargo 475kg (EPA) 450kg (EU)
Fuel Capacity 37 L

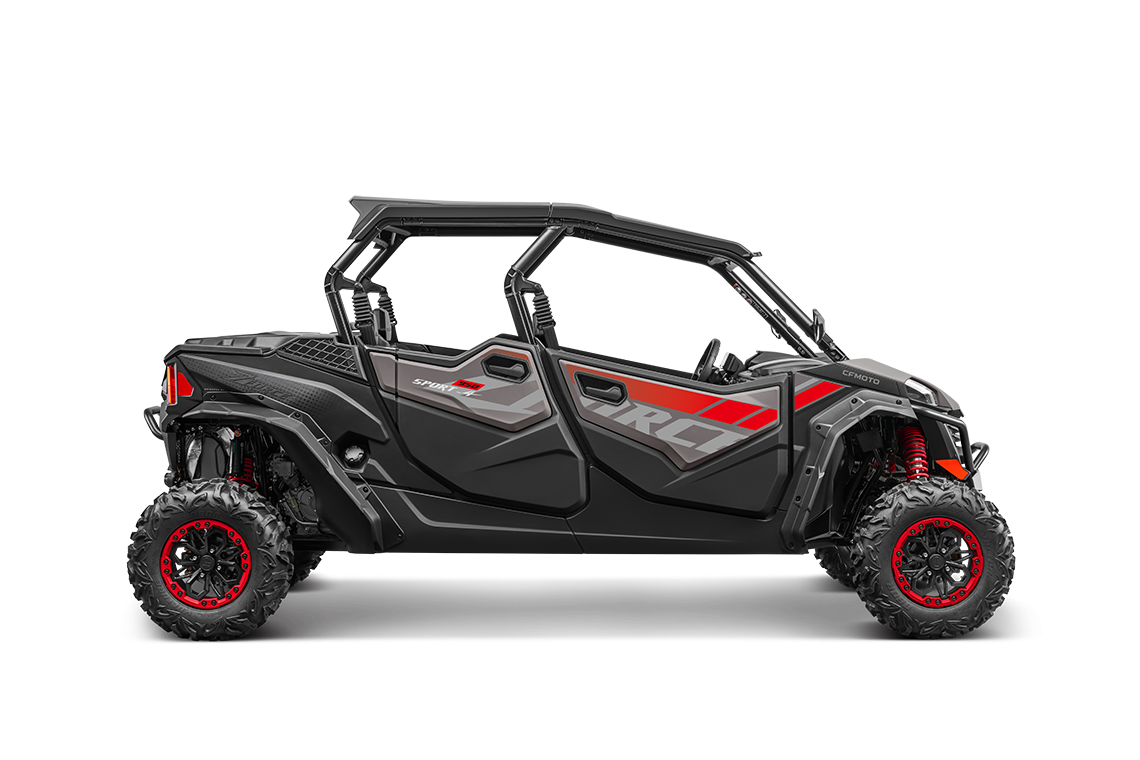

Colors Nebula Black/ Granite Ridge/ Magma Red
Chassis
Drive 2WD/4WD/4WD Lock
Brake 4-wheel disc brakes, transmission parking
Suspension
Front: Arched dual A-arm Independent Rear: Dual A-arm with connection rod
Shock Absorber Piggyback gas shock with 3-position compression adjustable
Rim 14" Beadlock alloy rims
Tire Front:27×9.00-14Rear:27×11.00-14
